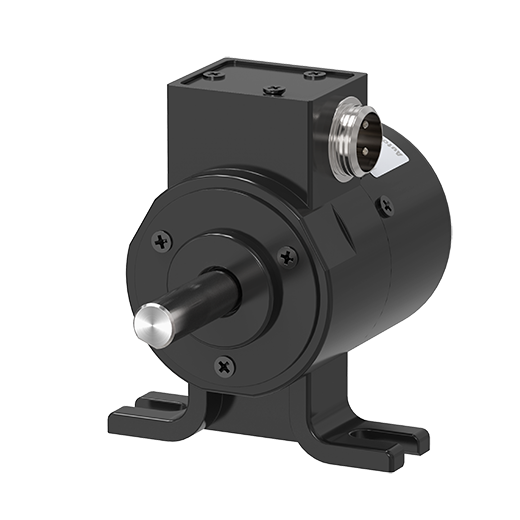

ENA-5000-3-V-24 - Seitlich montierte inkrementelle Drehgeber (Wellentyp)

ENA-5000-3-V-24
- Außendurchmesser der Welle : Ø10mm
- Max. Antworthäufigkeit : 300kHz
- Max. zulässige Drehzahl : 5000rpm
- Anfahrdrehmoment : Max. 70gf.cm(max. 0.00686N.m)
- Resolution : 5000P/R
- Steuerausgang : Spannung
- Spannungsversorgung : 12-24VDC
±5%(ripple P-P: max. 5%)
- Anschlussart : Radialer Steckertyp
- Schutzstruktur : IP50
Datenblatt Drucken
Außendurchmesser der Welle | Ø10mm |
---|---|
Max. Antworthäufigkeit | 300kHz |
Max. zulässige Drehzahl | 5000rpm |
Anfahrdrehmoment | Max. 70gf.cm(max. 0.00686N.m) |
Resolution | 5000P/R |
Ausgangsphase | A, B, Z |
Steuerausgang | Spannung |
Spannungsversorgung | 12-24VDC |
Anschlussart | Radialer Steckertyp |
Schutzstruktur | IP50 |
Umgebung_Umgebungstemperatur | -10 bis 70℃, Lagerung: -25 bis 85℃ |
Umgebung_Umgebungsfeuchtigkeit | 35 bis 85% RH, Lagerung: 35 bis 90% RH |
Zubehör | Ø10mm Kupplung, Anschlusskabel |
Gewicht | Ca. 345g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※Sold separately: Connector cable
