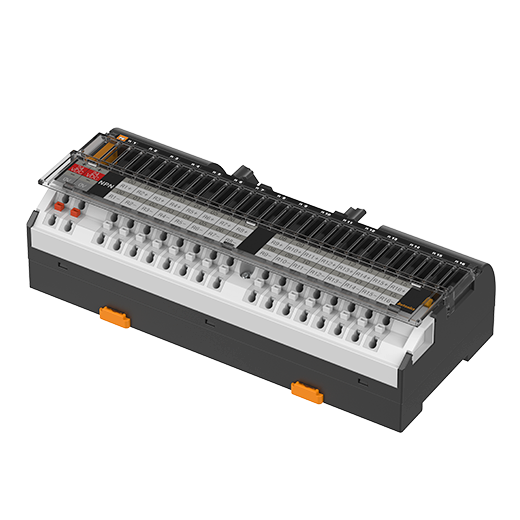

ASL-H16MP0-PN - Solid State Relay Terminal Blocks (Screwless Push-In Type)
* Image may differASL-H16MP0-PN
- Rated voltage : 24VDC
±10% - Output rating voltage and current of SSR (ambient temp.) : 60VAC 50/60Hz or 60VDC 2.4A (25℃) or 1.7A (55℃)
- Current consumption : ≤4mA
- Applied SSR : AQZ202D(Panasonic)
- Terminal type : Screwless
- Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃
- Protection structure : IP20(IEC standard)
Data sheet Print
| Rated voltage | 24VDC ±10% |
|---|---|
| Output rating voltage and current of SSR (ambient temp.) | 60VAC 50/60Hz or 60VDC 2.4A (25℃) or 1.7A (55℃) |
| Current consumption | ≤4mA |
| Applied SSR | AQZ202D(Panasonic) |
| Terminal type | Screwless |
| Terminal pitch | ≥7.8mm |
| Indicator | Power indicator: Red LED, operation indicator: Blue LED |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mm²)(60℃ only) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 2,500VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block, cover: polycarbonate, case/base: modified polyphenylene oxide |
| Accessories | Jumper bar: 2, ejector: 1 |
| Protection structure | IP20(IEC standard) |
| Weight | Approx. 377g (approx. 278g) |
