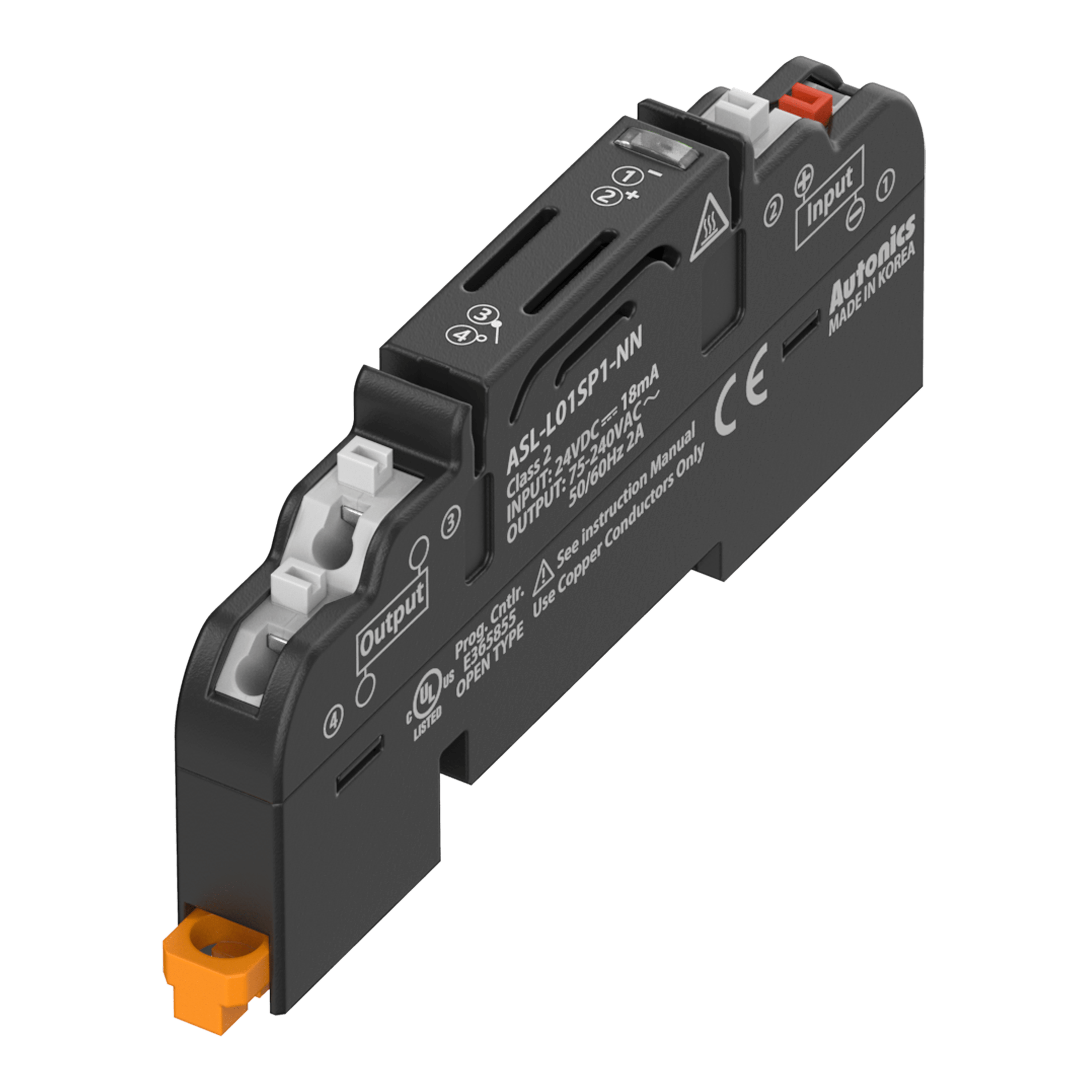

ASL-L01SP1-PY - Solid State Relay Terminal Blocks (Screwless Push-In Type)

Data sheet Print

Data sheet

Rated voltage	24VDC ±10%
Rated load voltage & current	75-240VAC~ 50/60Hz 2A
Current consumption	≤ 18mA
Applied SSR	AQG22124(Panasonic)
Terminal type	Screwless
Terminal pitch	9.0mm(arranging over 2 units)
Indicator	Blue LED
Applicable cable_Solid wire	Ø0.6 to Ø1.25mm(60℃ only)
Applicable cable_Stranded wire	AWG22-16(0.30 to 1.25mm²)(60℃ only)
Insulation resistance	≥1,000MΩ (at 500VDC megger)
Dielectric strength_Between coil-contacts	2,500VAC 50/60Hz for 1 minute
Dielectric strength_Between same contacts	300VAC 50/60Hz for 1 minute
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide
Accessories	Jumper bar: 1
Protection structure	IP20(IEC standard)
Weight	Approx. 140g(approx. 22g)

※This is relay load capacity when it is resistive load and temperature characteristic curve is satisfied.
※The current consumption including LED current by one relay.
※When using stranded wire, use End Sleeve (ferrule terminal) crimp terminals.
※The weight of 1-point unit is per 4 units with packaging and the weight of parenthesis is per 1.
※Environment resistance is rated at no freezing or condensation.
