ATS11-11D - Compact Multi-Function Analog Timers

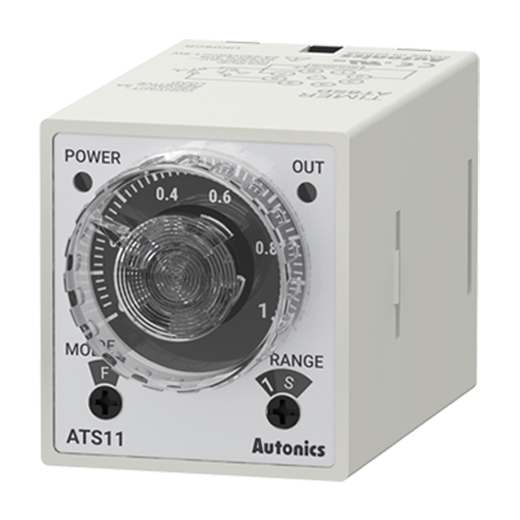

* Image may differATS11-11D
- Operation method : Time setting
- Output Operation : SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
- Time operation : SIGNAL ON START
- Terminal : 11-pin plug
- Power supply : 12VDC
- Signal Input Method : No-voltage input(NPN)
- Control output : Time-limit SPDT (1c): 2
Data sheet Print
| Operation method | Time setting |
|---|---|
| Output Operation | SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL |
| Time operation | SIGNAL ON START |
| Terminal | 11-pin plug |
| Power supply | 12VDC |
| Setting range | 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour |
| Signal Input Method | No-voltage input(NPN) |
| Control output | Time-limit SPDT (1c): 2 |
| Min. signal Width | START, INHIBIT, RESET: [No-voltage input] - Short-circuit impedance: Max. 1kΩ, Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 95g (approx. 70g) |
※Sockets (8-pin sockets: PG-08, PS-08(N)/11-pin sockets: PG-11, PS-11(N)) are sold separately.
※Refer to time specifications for control time setting range by model.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
