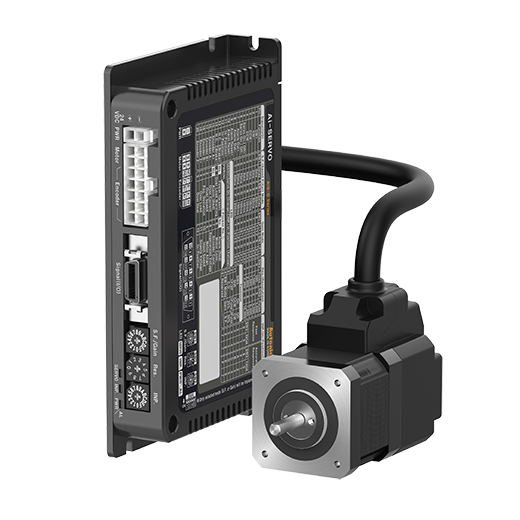

AiS-42SA - 2-Phase Closed Loop Stepper Motor System
* Image may differAiS-42SA
- Driver_Operation Method : Bipolar constant current Drive
- Driver_Applied Motor : Frame size 42mm 2-phase closed loop stepper motor
- Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2)
- Driver_Power supply : 24VDC
- Driver_Max. Run Current : 1.7A/Phase
Data sheet Print
| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 42mm 2-phase closed loop stepper motor |
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2) |
| Driver_Power supply | 24VDC |
| Driver_Max. Run Current | 1.7A/Phase |
| Driver_Max. Power consumption | 60W |
| Driver_Output | In-Position, Alarm Out, Encoder signal (A,  , B,  , Z,  ) |
| Driver_Protection structure | IP20 |
| Driver_Approval |  |
| Motor_Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
| Motor_Max. Holding Torque | 2.55kgf.cm |
| Motor_Rotor Moment Of Inertia | 35g·cm² |
| Motor_Winding Resistance | 1.7Ω |
| Motor_Rated Current | 1.7A/Phase |
| Motor_Motor length | 67.5mm |
| Motor_Shaft Type | Single shaft |
| Motor_Operation Method | Bipolar |
| Motor_Resolution | 10,000PPR(2,500PPR×4-multiply) |
| Motor_Output phase | A, , B, , Z, |
| Motor_Max. response frequency | 300kHz |
| Motor_Protection structure | IP30 |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -10 to 60℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 400g(approx. 290g) |
| Motor_Number Of Axes | 1-axis |
| Motor_Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | Approx. 0.45kg(approx. 0.34kg) |
※Max. power consumption during operation. When changing the load rapidly, instantaneous peak current may increase. The capacity of power supply should be over 1.5 to 2 times of max. power consumption.
※RUN current varies depending on the input RUN frequency and max. RUN current at the moment varies also.
※Max. holding torque is standard torque when supplying the rated current (2-phase holding) and stopping the motor for comparing the specifications of motors.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
