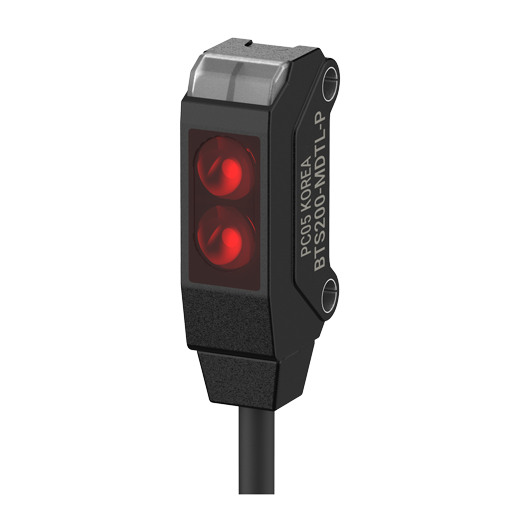

BTS200-MDTL-P - Ultra-Compact, Slim Type Photoelectric Sensors

Data sheet Print

Data sheet

Sensing type	Retroreflective type
Sensing distance	10~200mm
Sensing target	Opaque material of min. Ø27mm(min. sensing target: opaque material of Ø2mm)
Light source	Red LED(650nm)
Response time	Max. 1ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 20mA
Operation mode	Light ON
Control output	PNP open collector
Connection type	Cable type(Ø2.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55℃, storage: -30 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A)
Weight	Approx. 45g(approx. 25g)

※When using reflective tapes, the Reflectivity vary by the size of the tape.
Please refer to the ‘▣ Reflectivity By Reflective Tape Model’ table before using the tape.
※Min. sensing target: It will vary by the installation environment and sensing conditions.
Please refer to the ‘◎ Conditions of min. sensing target and installations (retroreflective type)’.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
※Based on 100mm sensing distance.
※Sold separately: Slit (BTS1M-ST: Ø1)
