CNE-P04-YW - Sensor Connectors

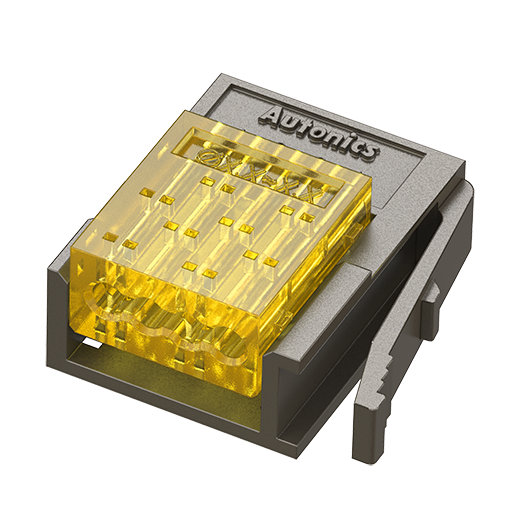

* Image may differCNE-P04-YW
- Number of pins : 4-pin
- Power supply : ≤32VAC~/VDC
- Rated current : Max. 3.0A
- Terminal retention : Min. 1.4kgf
- AWG : AWG24-26
- Cover color : Yellow
Data sheet Print
| Number of pins | 4-pin |
|---|---|
| Power supply | ≤32VAC~/VDC |
| Rated current | Max. 3.0A |
| Terminal retention | Min. 1.4kgf |
| AWG | AWG24-26 |
| Nominal cross Section Area | 0.13 to 0.21mm² |
| Cover diameter | Ø1.0 to 1.2mm |
| Cover color | Yellow |
| Extraction | Min. 0.49N (50gf)/pin |
| Insertion | Max. 1.96N (200gf)/pin |
| Material | Body: PC/ABS (UL94V-0), Terminal: C5210 (gold 0.2μm), Case: PC (UL94-V0) |
