CVC-DNB-3050-I - Valve Plug Cables

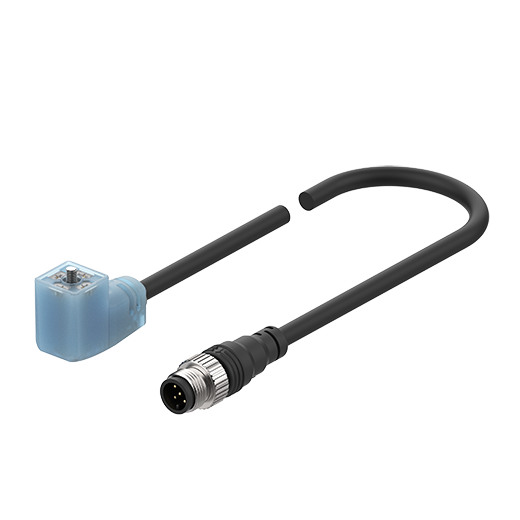

* Image may differCVC-DNB-3050-I
- Power supply : 24VDC
- Rated current : Max. 2A
- Conductor resistance : Max. 60.12Ω/km (AWG22)
- Insulation resistance : ≥1,000MΩ (at 500VDC megger)
- Cable tensile force : 10kgf(100N)
- Environment_Ambient temperature : -25 to 70℃, storage: -30 to 80℃
- Protection structure : IP67
- Weight : Approx. 60.1g (approx. 55g)
Data sheet Print
| Power supply | 24VDC |
|---|---|
| Rated current | Max. 2A |
| Conductor resistance | Max. 60.12Ω/km (AWG22) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Cable tensile force | 10kgf(100N) |
| Mounting torque | 4.0~6.1kgf.cm(0.4~0.6N.m) |
| Dielectric strength | 2,000VAC~ 50/60Hz (for 1 min.) |
| Vibration | 1.0mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 1 hour |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67 |
| Weight | Approx. 60.1g (approx. 55g) |
※Tightening torque of M12 nut is 0.6 to 0.7N.m.
※The weight includes packaging. The weight in parentheses is for unit only. (based on CVA/CVC-□□□-3010-I type. add approx. 35g per 1m.)
※Environment resistance is rated at no freezing or condensation.
