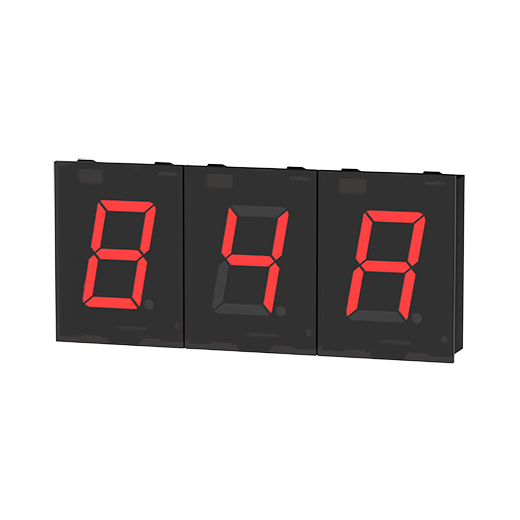

D1SC-N - Large 7-Segment Digital Display Units
* Image may differD1SC-N
- Input method : Serial input or Parallel(static/dynamic parallel) input
- Input logic : Positive logic(PNP), Negative logic(NPN)
- Display method : 7-segment LED
- Display color : Red
- Display characters : Decimal: 0 to 9, dot, minus
Hexadecimal: 0 to 9, A to F, dot, minus
(set by switch) - Current consumption : Max. 70mA
- Max. Connections : ∞
- Power supply : 12-24VDC
Data sheet Print
| Input method | Serial input or Parallel(static/dynamic parallel) input |
|---|---|
| Input logic | Positive logic(PNP), Negative logic(NPN) |
| Display method | 7-segment LED |
| Display color | Red |
| Display characters | Decimal: 0 to 9, dot, minus Hexadecimal: 0 to 9, A to F, dot, minus (set by switch) |
| Character size | W37×H57mm |
| Current consumption | Max. 70mA |
| Max. Connections | ∞ |
| Power supply | 12-24VDC |
| Environment_Ambient temperature | 0 to 60℃, storage: -10 to 85℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Accessories | Housing[5264-10], Terminal[5263(PBT)], Sub-PCB for multi-stage connection |
| Weight | Approx. 100g |
※Max. Clock is for 1:1 of duty ratio (ON, OFF ratio).
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
