D5W-M - Panel Mount 5-Digit Digital Display Units

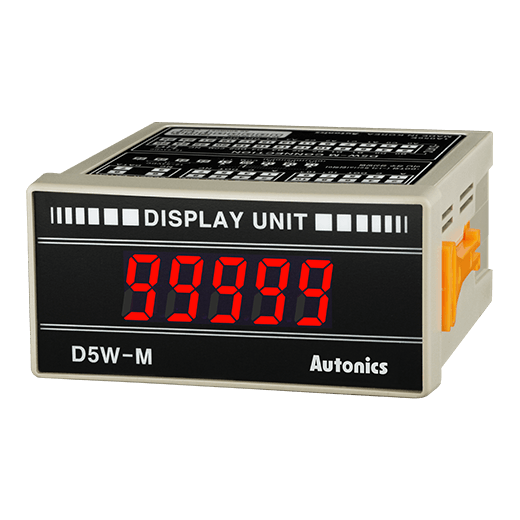

* Image may differD5W-M
- Input method : Serial input or Parallel(static/dynamic parallel) input
- Input logic : Positive logic(PNP), Negative logic(NPN)
- Display method : 5-digit, 7-segment LED
- Display color : Red
- Display characters : 4-digit: -9999 to 9999
5-digit: 0 to 99999
(set by switch) - Power consumption : Max. 1.1W
- Power supply : 12-24VDC
Data sheet Print
| Input method | Serial input or Parallel(static/dynamic parallel) input |
|---|---|
| Input logic | Positive logic(PNP), Negative logic(NPN) |
| Display method | 5-digit, 7-segment LED |
| Display color | Red |
| Display characters | 4-digit: -9999 to 9999 5-digit: 0 to 99999 (set by switch) |
| Character size | W7×H14mm |
| Power consumption | Max. 1.1W |
| Power supply | 12-24VDC |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 165g |
※AC Power is only for D5W and it is option.
※Max. Clock is for 1:1 of duty ratio (ON, OFF ratio).
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
