DPU11C-250A - Digital Thyristor Power Controllers

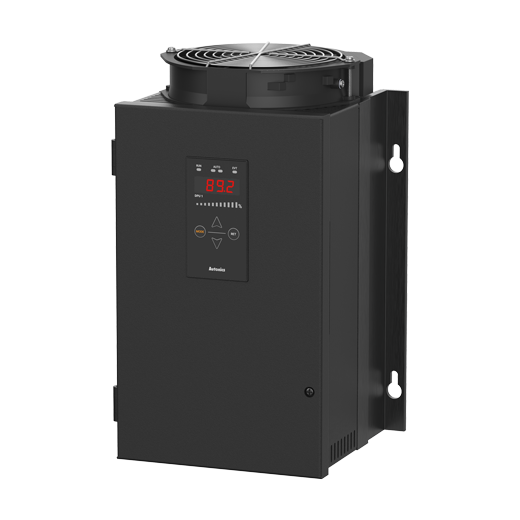

* Image may differDPU11C-250A
- Number of phase : Single-phase
- Indicator : Operation / manual control indicator (green)
DI, alarm / unit (V, A) indicator (red) - Power supply : 110V
- Power consumption : ≤ 40 W (control power)
- Rated current capacity : 250A
- Option : Remote Display Unit + RS485 Communication
Data sheet Print
| Number of phase | Single-phase |
|---|---|
| Indicator | Operation / manual control indicator (green) DI, alarm / unit (V, A) indicator (red) |
| Control input | • Auto: 4-20mA / 0-20mA / 0-5VDC  / 1-5VDC / 0-10VDC / voltage pulse (0/12VDC ) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W) |
| Control method | • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.) |
| Load | • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load |
| Output range | Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100% |
| Power supply | 110V |
| Power consumption | ≤ 40 W (control power) |
| Rated current capacity | 250A |
| Option | Remote Display Unit + RS485 Communication |
| Environment_Ambient temperature | -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation) |
| Size | 250~350A |
| Unit weight (packaged weight) | ≈ 11.0 kg (≈ 12.1 kg) |
※Variable cycle control is only for 1-phase model.
※The weight is for unit only. The weight in parenthesis includes packaging.
※Environment resistance is rated at no freezing or condensation.
