DS16-RT - Intelligent Type Digital Display Units

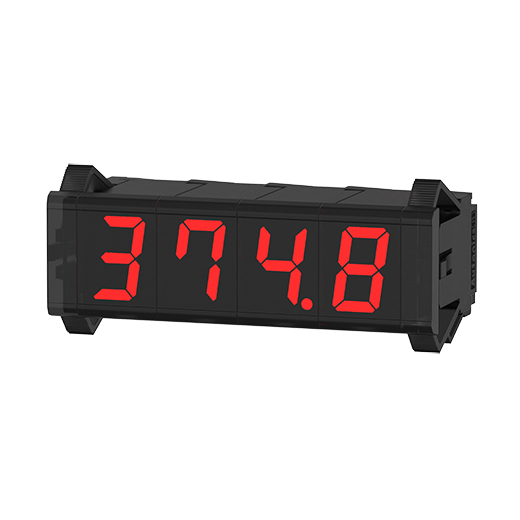

* Image may differDS16-RT
- Input method : RS485 communication input
- Display method : 7-segment LED
- Display color : Red
- Display characters : Displays 64 types of character and sign(0 to 9, A to Z, 27 signs, dot)
- Current consumption : Max. 20mA
- Power supply : 12-24VDC
Data sheet Print
| Input method | RS485 communication input |
|---|---|
| Display method | 7-segment LED |
| Display color | Red |
| Display characters | Displays 64 types of character and sign(0 to 9, A to Z, 27 signs, dot) |
| Character size | W9×H16mm |
| Current consumption | Max. 20mA |
| Max. Connections | 24 EA |
| Power supply | 12-24VDC |
| Input resistance | 20kΩ |
| Input level | High: 4.5-24VDC , low: 0-1.2VDC |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Accessories_Basic unit | Right/Left cap: 1 |
| Protection structure | IP40(front panel) |
| Weight | Approx. 52g(approx. 12g) |
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
