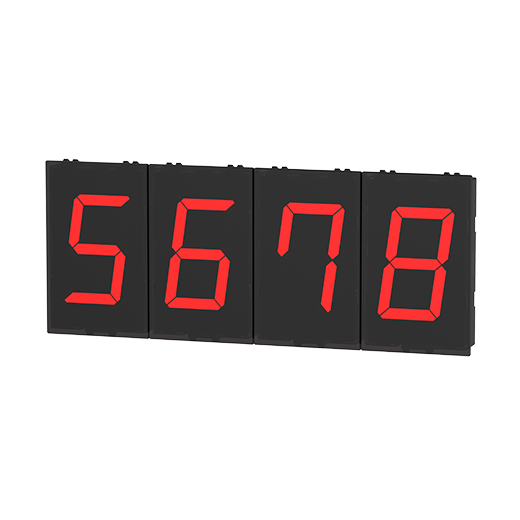

DS60-RE - Intelligent Type Digital Display Units
* Image may differDS60-RE
- Display method : 7-segment LED
- Display color : Red
- Power supply : 12-24VDC
Data sheet Print
| Display method | 7-segment LED |
|---|---|
| Display color | Red |
| Character size | W33.6×H60mm |
| Power supply | 12-24VDC |
| Input resistance | 20kΩ |
| Input level | High: 4.5-24VDC , low: 0-1.2VDC |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Accessories_Expansion unit | Ribbon cable(50mm): 1 |
| Protection structure | IP40(front panel) |
| Weight | Approx. 110g(approx. 60g) |
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
