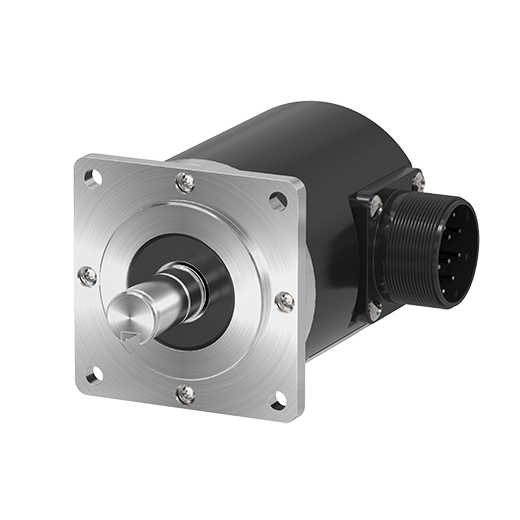

E68S15-500-6-L-5 - 68 mm Incremental Rotary Encoders (Shaft Type)

Data sheet Print

Data sheet

Shaft outer diameter	Ø15mm
Max. response frequency	180kHz
Max. allowable revolution	6500rpm
Starting torque	Max. 1.5kgf.cm(max. 0.147N.m)
Resolution	500P/R
Output phase	A, , B, , Z,
Control output	Line Driver
Power supply	5VDC ±5%(ripple P-P: max. 5%)
Connection type	Radial connector type
Protection structure	IP65
Environment_Ambient temperature	-10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Weight	Approx. 550g

※Connector standard: MS3102A20-29P
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
