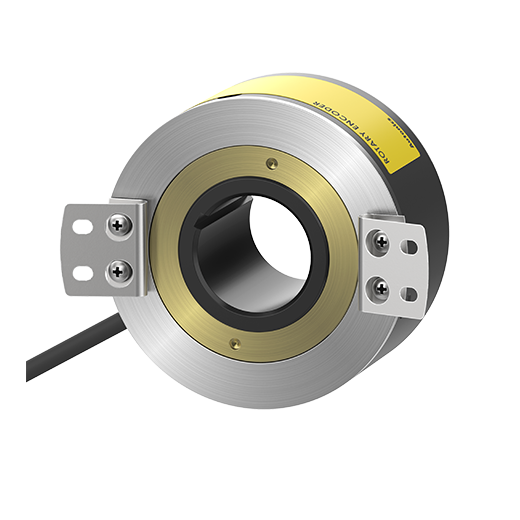

E80H32-3200-3-V-5 - 80 mm Incremental Rotary Encoders (Hollow Shaft Type)

E80H32-3200-3-V-5
- Shaft inner diameter : Ø32mm
- Max. response frequency : 200kHz
- Max. allowable revolution : 3600rpm
- Starting torque : Max. 200gf.cm(max. 0.0196N.m)
- Resolution : 3200P/R
- Control output : Voltage
- Power supply : 5VDC
±5%(ripple P-P: max. 5%)
- Connection type : Radial cable type
- Protection structure : IP50
Data sheet Print
Shaft inner diameter | Ø32mm |
---|---|
Max. response frequency | 200kHz |
Max. allowable revolution | 3600rpm |
Starting torque | Max. 200gf.cm(max. 0.0196N.m) |
Resolution | 3200P/R |
Output phase | A, B, Z |
Control output | Voltage |
Power supply | 5VDC |
Connection type | Radial cable type |
Protection structure | IP50 |
Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
Accessories | Spring bracket |
Weight | Approx. 560g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
