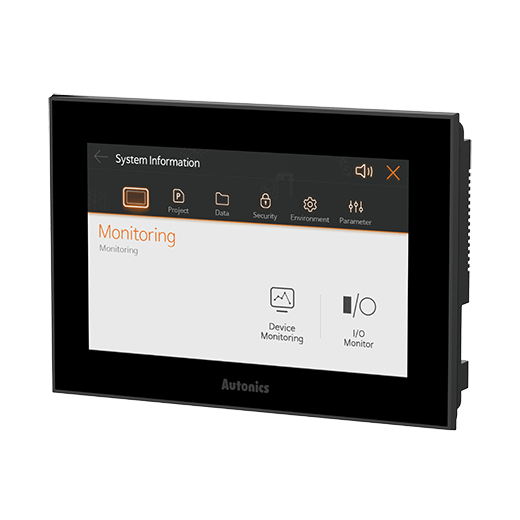

LP-A070-T9D7-C5R - 7-Inch Color LCD Logic Panels

LP-A070-T9D7-C5R
- Display Specifications_LCD Type : TFT Color LCD
- Display Specifications_Resolution : 800×480 dot
- Display Specifications_Display Area : 154.4×93.44 mm
- Display Specifications_Color : 16,777,216 colors
- Graphic Drawing Memory : 64MB
Data sheet Print
Display Specifications_LCD Type | TFT Color LCD |
---|---|
Display Specifications_Resolution | 800×480 dot |
Display Specifications_Display Area | 154.4×93.44 mm |
Display Specifications_Color | 16,777,216 colors |
Graphic Drawing Memory | 64MB |
Touch method | Pressure sensitive type |
Interface_RS232C | 2 EA |
Interface_Ethernet | IEEE802.3(U), 10/100Base-T |
Power supply | 24VDC |
Protection structure | IP65 (Front panel, IEC standards) |
Dedicated Software | atDesigner, atLogic |
Interface_USB(Host) | 1 EA |
Interface_USB(Device) | 1 EA |
Graphic drawing Perfomance_Language | English, Korean |
Graphic drawing Perfomance_Text | Bitmap ASCII and vector font |
Graphic drawing Perfomance_Number of user screen | 100 pages |
Real-time controller | RTC embedded |
Accessories | Fixing bracket: 4, Battery (included) |
Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Weight | Approx. 742g (approx. 540g) |
