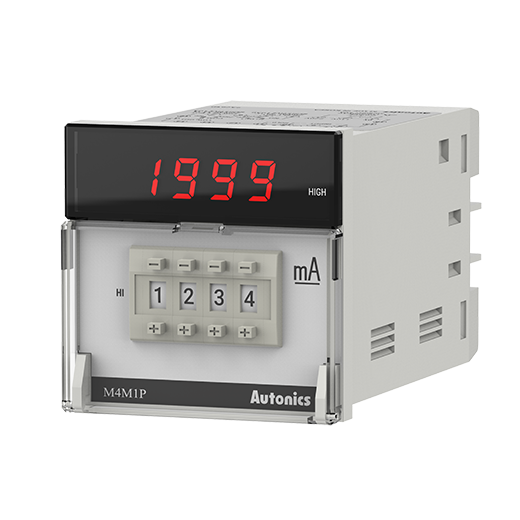

M4M1P-DI-XX - Digital Scaling Meter

Data sheet Print

Data sheet

Display method	3½-digit 7-segment LED
Character height	10mm
Measurement	Digital scaling
Input specification	DC4-20mA(1-5VDC )
Max. display Range	0 to 1999
Power supply(Option)	110/220VAC~ 50/60Hz
Output	Relay(HI)
Max. allowable input	150% for each input specification (at 400VAC:120%)
Display accuracy_DC power	F.S. ±0.2% rdg ±1-digit
Sampling cycle	300ms
Environment_Ambient temperature	-10 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 290g

※1-5VDC of measuring input specification is available by option.
It will be a default value if there is no request for order.
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
