M4M2P-DV-5 - Digital Voltmeters

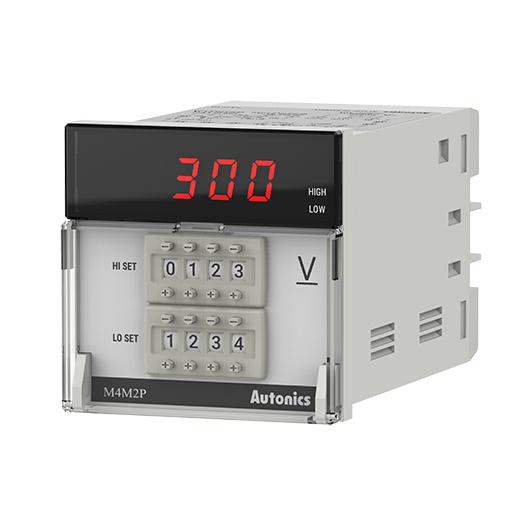

* Image may differM4M2P-DV-5
- Display method : 3½-digit 7-segment LED
- Character height : 10mm
- Measurement : DC voltage
- Input specification : 300V
- Max. display Range : 0 to 300
- Output : Relay(HI, LOW)
Data sheet Print
| Display method | 3½-digit 7-segment LED |
|---|---|
| Character height | 10mm |
| Measurement | DC voltage |
| Input specification | 300V |
| Max. display Range | 0 to 300 |
| Power supply(Option) | 110/220VAC~ 50/60Hz |
| Output | Relay(HI, LOW) |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Display accuracy_DC power | F.S. ±0.2% rdg ±1-digit |
| Sampling cycle | 300ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 316g |
※Available input can be direct connection if under 300VDC, 400VAC.
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
