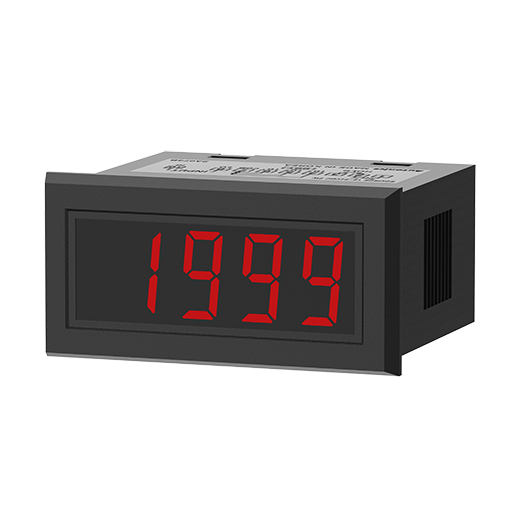

M4N-DI-1X - Compact Digital Panel Meters

Data sheet Print

Data sheet

Display method	3½-digit 7-segment LED
Character height	10mm
Max. display Range	0 to 1999
Measurement	Digital scaling
Input specification	DC4-20mA(1-5VDC )
Power supply	12-24VDC
Output_Main Output(Comparative Value)	Indicator
Display accuracy	F.S. 0.2% rdg ±1-digit
Sampling cycle	300ms
Max. allowable input	150% of measurement input range
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 44g

※M4N series is to measure DC only. AC voltage and AC current is not available to be measured.
※Measuring range for direct connection is max. 200VDC, max. DC200mA.
※1-5VDC measuring input is optional.
If there is no additional order, its factory default is DC4-20mA.
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
