M4W-AA-6 - Digital Ammeters

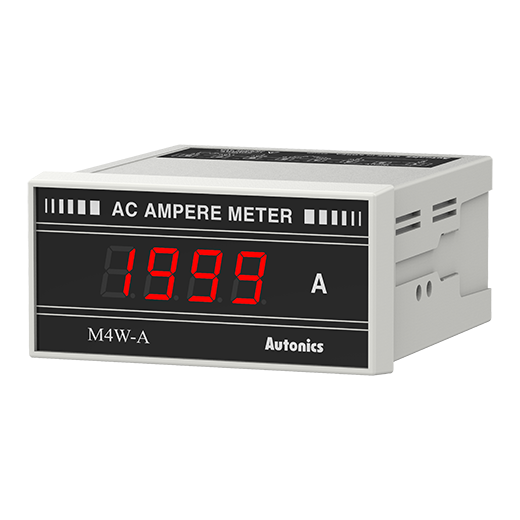

* Image may differM4W-AA-6
- Display method : 3½-digit 7-segment LED
- Character height : 14mm
- Measurement : AC current
- Input specification : 2000A/5A(CT)
- Max. display Range : 0 to 1999
- Output : Indicator
Data sheet Print
| Display method | 3½-digit 7-segment LED |
|---|---|
| Character height | 14mm |
| Measurement | AC current |
| Input specification | 2000A/5A(CT) |
| Max. display Range | 0 to 1999 |
| AC Measurement | Average value(AVG) |
| Power supply(Option) | 110/220VAC~ 50/60Hz |
| Output | Indicator |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Display accuracy_AC power | F.S. ±0.5% rdg ±1-digit |
| Sampling cycle | 300ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 168g |
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
