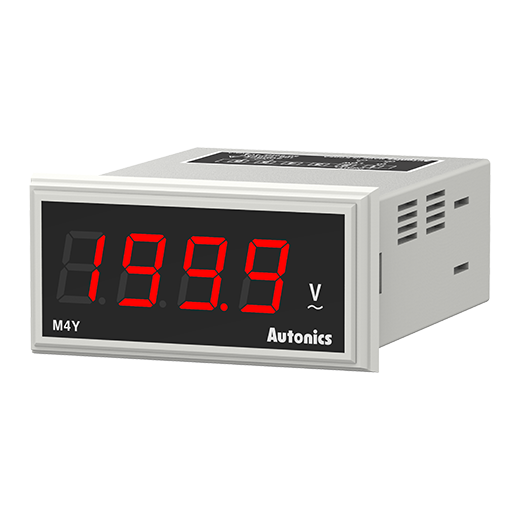

M4Y-AVR-XX - Digital Voltmeters
* Image may differM4Y-AVR-XX
- Display method : 3½-digit 7-segment LED
- Character height : 14mm
- Measurement : AC voltage
- Input specification : Option
- Max. display Range : 0 to 1999
- Output : Indicator
Data sheet Print
| Display method | 3½-digit 7-segment LED |
|---|---|
| Character height | 14mm |
| Measurement | AC voltage |
| Input specification | Option |
| Max. display Range | 0 to 1999 |
| AC Measurement | Root mean square value(RMS) |
| Power supply(Option) | 100-240VAC~ 50/60Hz(5VDC  ) |
| Output | Indicator |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Display accuracy_AC power | F.S. ±0.5% rdg ±1-digit |
| Sampling cycle | 300ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 144g |
※M4Y, M5W are indicator.
※Power supply: It is optional.(customizable)
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
