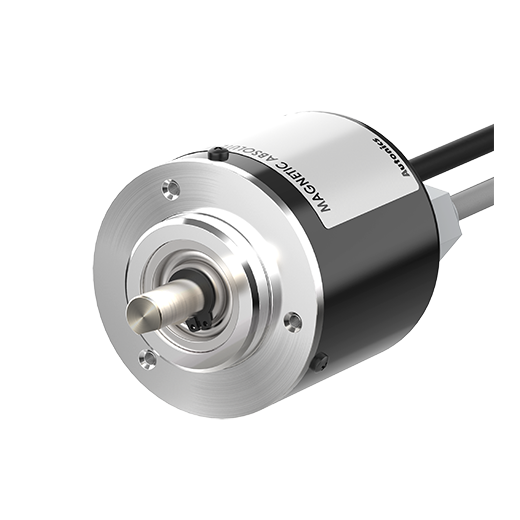

MGAM50S8-1013-B-R-PN-24 - 50 mm Magnetic Multi-Turn Absolute Rotary Encoders (Shaft Type)

Data sheet Print

Data sheet

Shaft outer diameter	Ø8mm
Max. response frequency	30kHz
Max. allowable revolution	3000rpm
Starting torque	Max. 70gf.cm(max. 0.0069N.m)
Resolution	Single-Turn: 1024-division, Multi-Turn: 8192-revolution
Output code	Binary Code
Rotating direction	CCW
Control output	Parallel NPN open collector
Power supply	12-24VDC ±5%(ripple P-P: max. 5%)
Connection type	Axial cable type
Electrical specification_Output_Positioning error	±1-bit(LSB: Least Significant Bit)
Environment_Ambient temperature	-10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Accessories	Bracket, Coupling
Weight	Approx. 523g(approx. 393g)

※It calibrates the multi-turn counts by comparing single-turn data before/after power off without counting multi-turn counts when power is off.
It shall be used on the condition that no overrated revolution occurred since proper multi-turn counts may not be available if any revolutions occurred over ±90°from the position when power is off.
※When turning ON/OFF the unit, there may be ±1-bit (LSB) error at present position by hysteresis.
※OVF alarm is ON when multi-turn count is out of counting range (0 to 8191 revolutions).
※Multi-turn count shall be initialized as「0 revolution」when multi-turn count reset is input.
※In case of Parallel type model, Make sure that Max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
