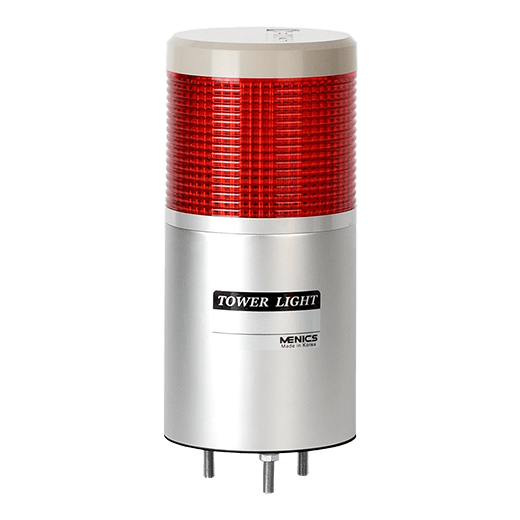

ML8S-F1FF-R - 86mm Large Aluminum Body Type LED Steady / Flashing Tower Light
* Image may differML8S-F1FF-R
- Function : Steady+Flashing
- Power supply : 90~240VAC
- Current consumption : 0.02A
- LED color : Red
- Lens color : Red
- Connection type : Lead wire connection
- Protection structure : IP65
Data sheet Print
| Function | Steady+Flashing |
|---|---|
| Power supply | 90~240VAC |
| Current consumption | 0.02A |
| LED color | Red |
| Lens color | Red |
| Dimension | D86mm |
| Flashing rate | 80times/minute (±10%) |
| Mounting direction | Upward only |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Ambient temperature | -15~40℃ |
| Storage ambient temperature | -20~70℃ |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP65 |
