PMC-1HS-USB - 1-Axis/2-Axis High-Speed Programmable Motion Controllers

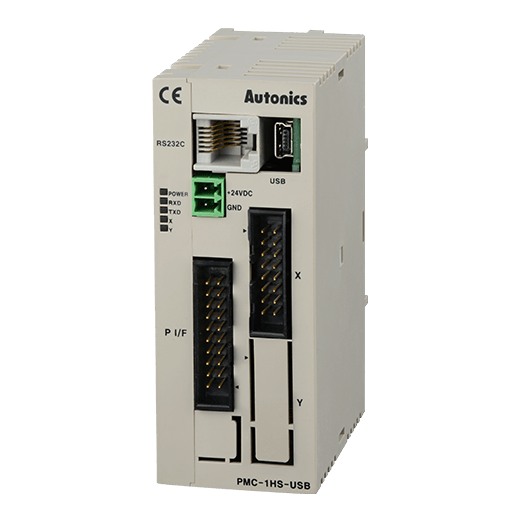

* Image may differPMC-1HS-USB
- Number Of Axes : 1-axis
- Type : Independent type
- Input/Output Contact : Parallel I/F: Input 13, Output 4
X-axis: Input 8, Output 5 (general output 1) - Operation mode : INDEX, PROGRAM(64-step), JOG, CONTINUOUS
- Connection method : RS232C, USB
- Power supply : 24VDC
Data sheet Print
| Number Of Axes | 1-axis |
|---|---|
| Type | Independent type |
| Input/Output Contact | Parallel I/F: Input 13, Output 4 X-axis: Input 8, Output 5 (general output 1) |
| Operation mode | INDEX, PROGRAM(64-step), JOG, CONTINUOUS |
| In-Position Setting | ABSOLUTE, INCREMENTAL |
| Drive Speed | 1 pps to 4 Mpps |
| Connection method | RS232C, USB |
| Communication Protocol | Autonics protocol |
| Power supply | 24VDC |
| Index step numbers | 64 indexes per axis |
| Inposition range | -8,388,608 to 8,388,607 (supports pulse scaling function) |
| Drive speed numbers | 1 pps to 4 Mpps (1 to 8,000 × magnification 1 to 500) |
| Accessories_Common | User manual, CD |
| Accessories_Power connector | [CN1] MC1, 5/2-ST-3.5(PHOENIX): 1 |
| Accessories_RS232C connector | [CN2] RS-232C communication cable (1.5m): 1 |
| Accessories_P I/F connector | [CN3] 20P MIL standard, 2.54mm connector: 1 |
| Accessories_X axis input/output connector | [CN4] 16P MIL standard, 2.54mm connector: 1 (In case of 2HS, using 2) |
| Accessories_USB connector | USB Communication cable(1m): 1 |
| Environment_Ambient temperature | 0 to 45℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 421.6g(approx. 96.9g) |
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
