PS08-2.5DP2U - Rectangular Inductive Proximity Sensors

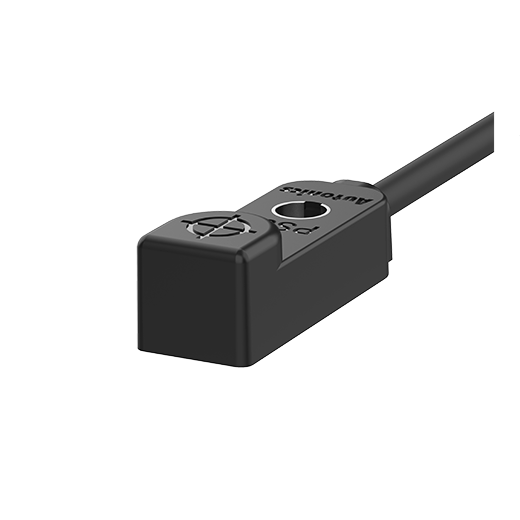

* Image may differPS08-2.5DP2U
- Sensing side size : Frame size 8mm
- Sensing distance : 2.5mm
- Standard sensing target : 8×8×1mm(iron)
- Response frequency : 1kHz
- Current specification : Current consumption: Max. 10mA
Data sheet Print
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side size | Frame size 8mm |
| Sensing distance | 2.5mm |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1kHz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Closed |
| Sensing type | Upper sensing type |
| Material | Polycarbonate |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Weight | ≈ 16 g (≈ 30 g) |
