PTF30-GHNN-F8 - Display Type Pressure Transmitters

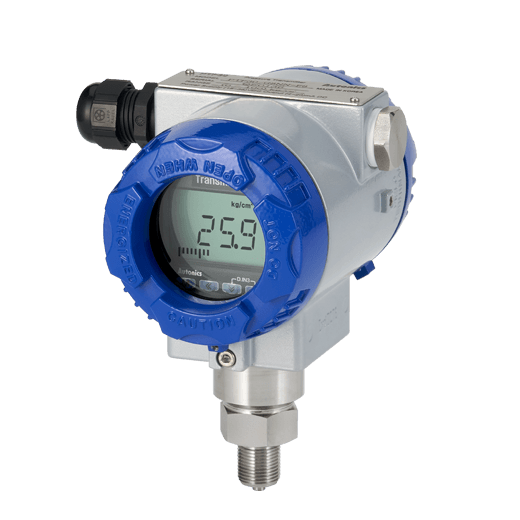

* Image may differPTF30-GHNN-F8
- Power supply : 15-35VDC
- Output : DC4-20mA 2-wire Low-limit: 3.6mA(-2.5%), high-limit: 21.6mA(+10%)
- Accuracy : ±0.2% of F.S.
- Environment_Ambient temperature : -20 to 70℃, storage: -20 to 80℃
- Environment_Ambient humidity : 0 to 85%RH
- Protection structure : IP67(IEC standard)
Data sheet Print
| Power supply | 15-35VDC |
|---|---|
| Output | DC4-20mA 2-wire Low-limit: 3.6mA(-2.5%), high-limit: 21.6mA(+10%) |
| Accuracy | ±0.2% of F.S. |
| Environment_Ambient temperature | -20 to 70℃, storage: -20 to 80℃ |
| Environment_Ambient humidity | 0 to 85%RH |
| Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
| Explosion class | Ex d IIC T6 |
| Measurement pressure | Sealed gauge pressure |
| Protection structure | IP67(IEC standard) |
| Pressure range | -0.1 to 0.7MPa |
| Mounting bracket | Without bracket |
| Weight | Approx. 1.2kg |
| Pressure port | G3/8(PF) |
※Write the desired pressure range and it is the default of user pressure range. (select "Z" at pressure range)
※Span: User pressure range [
], URL: Pressure range by model
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
※This Explosion class is acquired and managed by Konics Co., Ltd.
