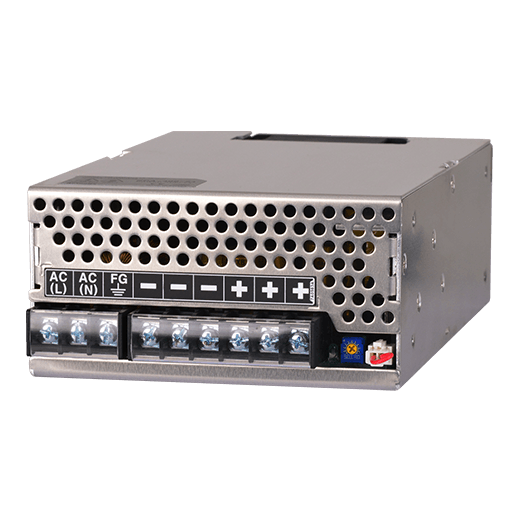

SPA-400-24 - Panel Mount Switching Mode Power Supplies

model * Image may differ

SPA-400-24

  • Output_power : 400.8W
  • Input_Voltage : 200-240VAC~
  • Permissible voltage : 190-264VAC~
  • Output_Voltage : 24VDC
  • Output_Current : 16.7A
  • Mounting type : Using Bolts
certmark certmark certmark

Data sheet Print

Data sheet
Output_power 400.8W
Input_Voltage 200-240VAC~
Permissible voltage 190-264VAC~
Output_Voltage 24VDC
Output_Current 16.7A
Mounting type Using Bolts
Protection Over-Current, Over-Voltage, Inrush Current, Output Short-Circuit, Remote Control, Terminal Cover
Input_Frequency 50/60Hz
Input_Efficiency 85% (after 10 min of power ON)
Input_Current consumption Max. 4.6A
Output type_Voltage adjustment range 22.8-25.2VDC
Output_Input fluctuation ratio Max. ±0.5%
Output_Load fluctuation ratio Max. ±1%
Environment_Ambient temperature -10 to 50℃, storage: -20 to 75℃
Environment_Ambient humidity 20 to 90%RH, storage: 20 to 90%RH (no freezing or condensation)
Weight Approx. 360g(approx. 228g)
