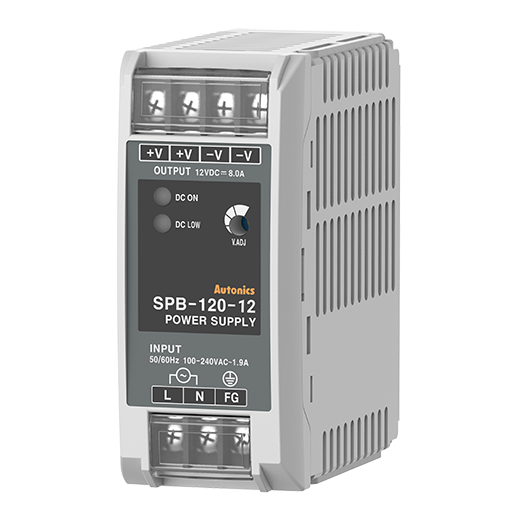

SPB-120-12 - DIN Rail Switching Mode Power Supplies (Discontinued)

Data sheet Print

Data sheet

Output_power	96W
Input_Voltage	100-240VAC~ 50/60Hz
Permissible voltage	85-264VAC~ 50/60Hz, 120-370VDC
Output_Voltage	12VDC
Output_Current	8A
Mounting type	DIN Rail
Protection	Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
Input_Frequency	50/60Hz
Input_Efficiency_100VAC~	0.82
Input_Efficiency_240VAC~	0.85
Input_Power factor	Min. 0.9
Input_Current consumption_100VAC~	1.19A
Input_Current consumption_240VAC~	0.52A
Output type_Voltage adjustment range	Max. ±5%
Output_Input fluctuation ratio	Max. ±0.5%
Output_Load fluctuation ratio	Max. ±1%
Output type_Ripple&Ripple noise	Max. ±1%
Protection structure	IP20(IEC standard)
Environment_Ambient temperature	-10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
Environment_Ambient humidity	25 to 85%RH, storage: 25 to 90%RH
Weight	Approx. 570g(approx. 466g)

※It is for 100% load.
※The output voltage adjuster (V.ADJ) should be used within voltage adjustment range.
※It is for the rated input voltage 100-240VAC (85-264VAC), and 100% load.
※It is for the rated input voltage 100-240VAC.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
