SR1-1425-N - Single-Phase Solid State Relays (Detachable Heatsink Type)

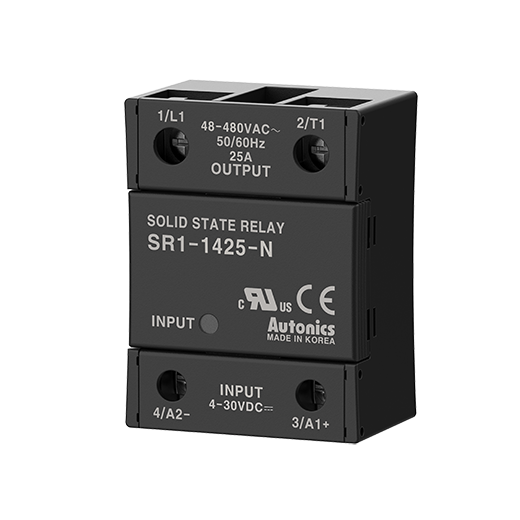

* Image may differSR1-1425-N
- Rated input voltage : 4-30VDC
- Rated load voltage : 48-480VAC~ (50/60Hz)
- Dielectric strength : 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case)
- Rated load current : 25A
- Function : Zero cross turn-on
Data sheet Print
| Control phase | Single-phase |
|---|---|
| Mounting type | Panel |
| Rated input voltage | 4-30VDC |
| Rated load voltage | 48-480VAC~ (50/60Hz) |
| Dielectric strength | 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case) |
| Rated load current | 25A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80℃, storage: -30 to 100℃(The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 111g(approx. 73g) |
