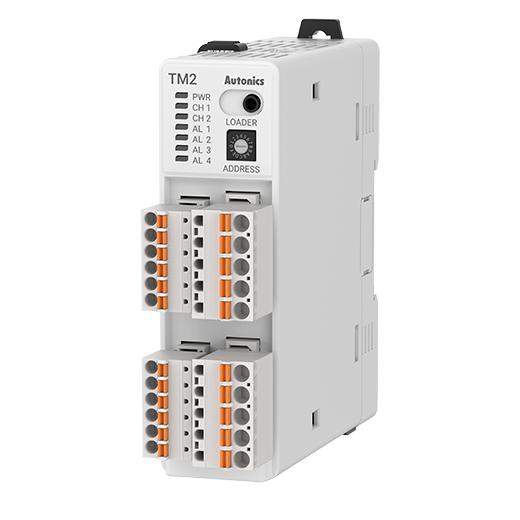

TM2-42CB - Modular Multi-Channel PID Temperature Controllers

Data sheet Print

Data sheet

Number of input channels	2-channel
Power supply	24VDC ±10%
Power consumption	≤ 5 W (for Max. load)
Sampling cycle	50ms(2-CH synchronous sampling)
Alarm output	250 VAC~ 3A 1a
Option input	CT, Digital(DI-1/2)
RS485 Comm.	Modbus ASCII / RTU
Control output	DC 4-20 mA or DC 0-20 mA (Load resistance: ≤ 500 Ω)
Hysteresis	1 to 100 (0.1 to 100) ℃/℉
Display method	Non-display
Control method	ON/OFF, P, PI, PD, PID
Proportional band	0.1 to 999.9℃/℉
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.1 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Weight_Basic module	Approx. 217g(approx. 152g)

※The expansion module does not supply power/comm. terminal. Order it with the basic module.
※In case of thermocouple K, J, E, T, N, it is below -100℃ and L, U, Platinel II, it is below ±2℃ ±1-digit.
In case of thermocouple B, display accuracy cannot be ensured under 400℃.
In case of thermocouple R, S, it is below 200℃ and C, G, it is max. 3℃ ±1-digit.
※Influence of temperature: Applied when it is for out of room temperature (23±5℃) range.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
