VG-M04B-8E - 0.4M Monochrome Vision Sensors

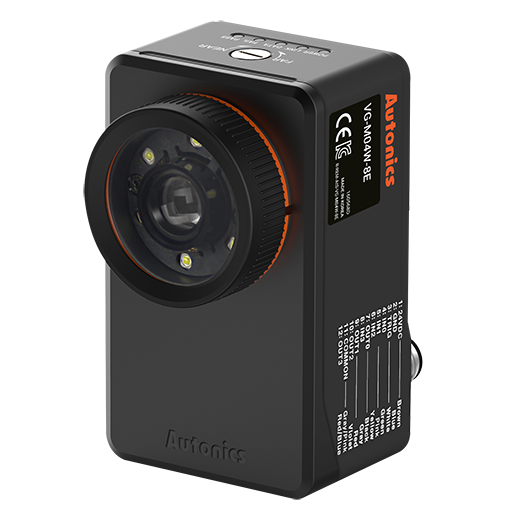

* Image may differVG-M04B-8E
- Effective focal length : 8mm
- Min. sensing distance : 50mm
- Power supply : 24VDC
±10% - Current consumption : 1A
- Inspection_Inspection item : Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting
- Environment_Ambient temperature : 0 to 45℃, storage: -20 to 70℃
- Protection structure : IP67(IEC standard)
Data sheet Print
| Effective focal length | 8mm |
|---|---|
| Min. sensing distance | 50mm |
| Power supply | 24VDC ±10% |
| Current consumption | 1A |
| Inspection_Inspection item | Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting |
| Inspection_Work group | 32 |
| Inspection_Simultaneous inspection | 64 |
| Inspection_Camera frame per second | Max. 60fps |
| Image snap_Image filter | Preprocessing, external filter(color filter, polarizing filter) |
| Image snap_Image element | 1/3 inch mono CMOS |
| Image snap_Resolution | 752×480 pixel |
| Image snap_Camera frame per second | Max. 60fps |
| Image snap_Shutter | Global shutter |
| Image snap_Exposure time | 20 to 10,000㎲ |
| Light_ON/OFF method | Pulse |
| Light_Color | Blue |
| Trigger mode | External trigger, internal trigger, free-run trigger |
| Input_Signal | Rated input 24VDC (±10%) |
| Input_Type | External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3) |
| Output_Signal | NPN or PNP open collector output Max. 24VDC 50mA, residual voltage: max. 1.2VDC |
| Output_Type | Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy |
| Output_FTP transmission | Possible |
| Communication | Ethernet(TCP/IP), 100BASE-TX/10BASE-T |
| Protection circuit | Output short over current protection circuit |
| Indicator | ᆞPower indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LED ᆞData transmission indicator(DATA): Orange LED ᆞFailure indicator(FAIL): Red LED |
| Insulation resistance | Over 20MΩ (at 500VDC megger) |
| Dielectric strength | 500VAC~ 50/60Hz for 1 min. |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | 0 to 45℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane |
| Accessories | Assembly tool, bracket A, mounting screw: 2 |
| Sold separately | Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover |
| Weight | Approx. 415g(approx. 273g) |
※Only light can be purchased separately.
※The number of camera frames per second can be different by image setting or inspection item.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
