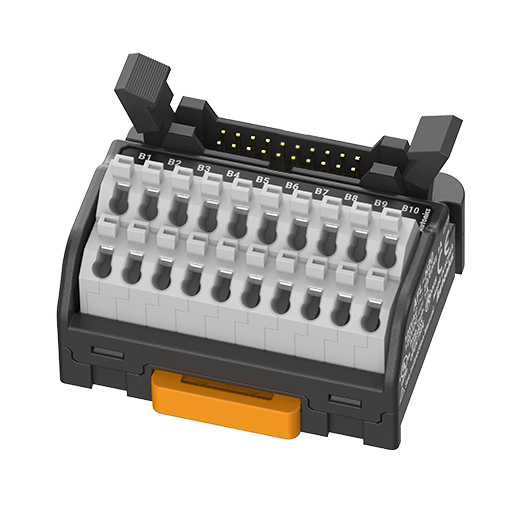

AFL-H20 - Interface Terminal Block (Tipe Screwless Push-In)
*Gambar mungkin dapat berbedaAFL-H20
- Jumlah terminal : 20 EA
- Tipe terminal : Tanpa baut
- Poros terminal : 5.0mm
- Material : CASE: Polycarbonate, BASE: Polycarbonate
- Berat : Kurang lebih 86.2g (kurang lebih 48.5g)
- Kisaran tegangan : Max. 125VDC
, 125VAC~ 50/60Hz - Kisaran arus : Maks. 1A
- Lingkungan_kadar suhu : -15 hingga 55℃, ruang tertutup: -25 hingga 65℃
- Tingkat proteksi : IP20 (standar IEC)
Data sheet Cetak
| Jumlah pin konektor | 20-pin |
|---|---|
| Jumlah terminal | 20 EA |
| Tipe terminal | Tanpa baut |
| Poros terminal | 5.0mm |
| Material | CASE: Polycarbonate, BASE: Polycarbonate |
| Berat | Kurang lebih 86.2g (kurang lebih 48.5g) |
| Kisaran tegangan | Max. 125VDC , 125VAC~ 50/60Hz |
| Kisaran arus | Maks. 1A |
| Ketahanan insulasi | ≥1,000MΩ (pada 500VDC megger) |
| Dielectric strength | 2.700 VAC ~ 50/60 Hz selama 1 menit |
| Lingkungan_kadar suhu | -15 hingga 55℃, ruang tertutup: -25 hingga 65℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, ruang tertutup: 35 ~ 85%RH |
| Tingkat proteksi | IP20 (standar IEC) |
※Please connect to a load using the same power supply. Connecting to a load from a different power supply may cause safety issues.
※When using stranded wire, use end sleeve (ferrule terminal) crimp terminals.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
