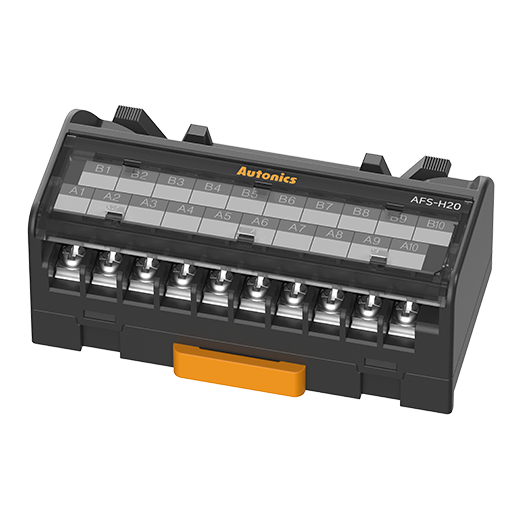

AFS-H20 - Interface Terminal Block

Data sheet Cetak

Data sheet

Jumlah pin konektor	20-pin
Jumlah terminal	20 EA
Poros terminal	7.0mm
Material	CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass
Berat	Kurang lebih 103g (kurang lebih 71g)
Kisaran tegangan	Max. 125VDC , 125VAC~ 50/60Hz
Kisaran arus	Max. 1A
Ketahanan insulasi	≥1,000MΩ (pada 500VDC megger)
Dielectric strength	2.700 VAC ~ 50/60 Hz selama 1 menit
Lingkungan_kadar suhu	-15 hingga 55℃, ruang tertutup: -25 hingga 65℃
Lingkungan_kadar kelembaban	35 ~ 85%RH, ruang tertutup: 35 ~ 85%RH

※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
