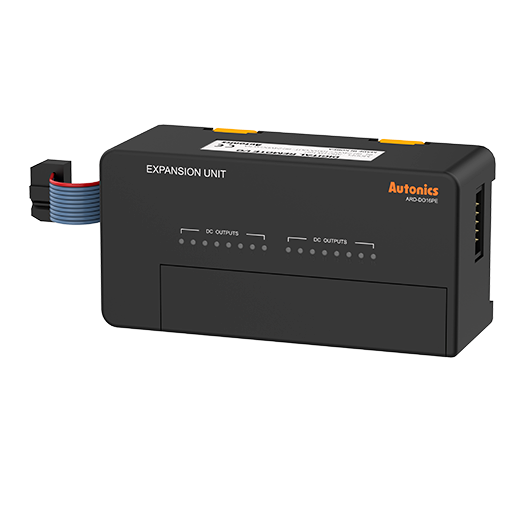

ARD-DO16PE - DeviceNet Digital Remote I/O (Tipe Terminal Block /Tipe Sensor Connector)
*Gambar mungkin dapat berbedaARD-DO16PE
- Jaringan : DeviceNet
- Tipe : Digital
- Jumlah I/O Output : 16-point (PNP)
- Spesifikasi I/O : Tegangan: 10-28VDC (voltage drop: maks. 0.5V)
Arus: 0.3A/poin (kebocoran arus: maks. 0.5mA) - Tipe modul : Unit ekspansi
- Catu daya : 24VDC
- Tingkat proteksi : IP20
Data sheet Cetak
| Jaringan | DeviceNet |
|---|---|
| Tipe | Digital |
| Jumlah I/O Output | 16-point (PNP) |
| Spesifikasi I/O | Tegangan: 10-28VDC (voltage drop: maks. 0.5V) Arus: 0.3A/poin (kebocoran arus: maks. 0.5mA) |
| Tipe modul | Unit ekspansi |
| Catu daya | 24VDC |
| Tingkat proteksi | IP20 |
| Material | Front case, Body Case: PC, Rubber cap: NBR |
| Tipe insulasi | I/O and inner circuit: insulated, DeviceNet and inner circuit: non-insulated, Power and DeviceNet: non-insulated |
| Lingkungan_kadar suhu | -10 hingga 50℃, ruang tertutup: -25 hingga 75℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, ruang tertutup: 35 ~ 85%RH |
| Berat | Kurang lebih 140g |
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※Expansion units (ARD-D□□□E) of ARD-D Series (digital, terminal block type) are available to order separately.
