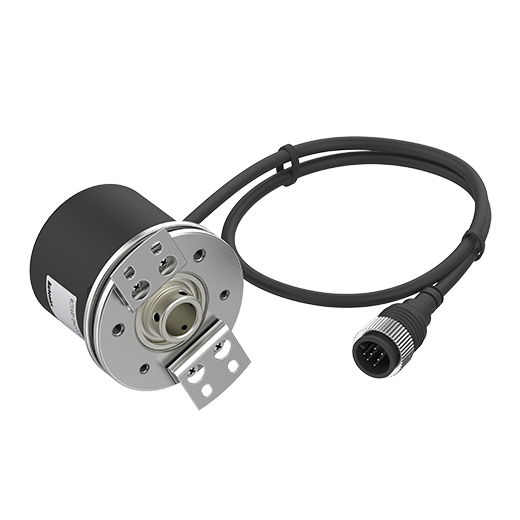

E58H12-1024-6-L-5-C - Rotary encoder inkremental 58 mm (tipe hollow shaft)
*Gambar mungkin dapat berbedaE58H12-1024-6-L-5-C
- Diameter inner shaft : Ø12mm
- Maks. Frekuensi respon : 300kHz
- Maks. Revolusi yang diperbolehkan : 5000rpm
- Starting torque : Max. 90gf.cm(max. 0.00882N.m)
- Resolusi : 1024P/R
- Output kontrol : Line Driver
- Catu daya : 5VDC
±5%(ripple P-P: maks. 5%) - Tipe koneksi : Tipe konektor kabel radial
- Tingkat proteksi : IP50
Data sheet Cetak
| Diameter inner shaft | Ø12mm |
|---|---|
| Maks. Frekuensi respon | 300kHz |
| Maks. Revolusi yang diperbolehkan | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolusi | 1024P/R |
| Fasa output | A,  , B,  , Z,  |
| Output kontrol | Line Driver |
| Catu daya | 5VDC ±5%(ripple P-P: maks. 5%) |
| Tipe koneksi | Tipe konektor kabel radial |
| Tingkat proteksi | IP50 |
| Lingkungan_kadar suhu | -10 hingga 70℃, ruang tertutup: -25 hingga 85℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, Ruang tertutup: 35 ~ 90%RH |
| Aksesoris | Braket |
| Berat | Kurang lebih 380g (kurang lebih 270g) |
※E58H (hollow shaft) has only radial cable type, radial cable connector type.
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
