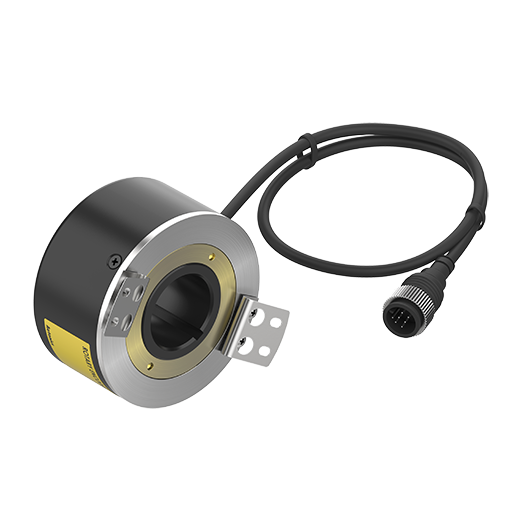

E80H30-1024-3-T-24-C - Rotary encoder inkremental 80 mm (tipe hollow shaft)
*Gambar mungkin dapat berbedaE80H30-1024-3-T-24-C
- Diameter inner shaft : Ø30mm
- Maks. Frekuensi respon : 200kHz
- Maks. Revolusi yang diperbolehkan : 3600rpm
- Starting torque : Maks. 200gf.cm(maks. 0.0196N.m)
- Resolusi : 1024P/R
- Output kontrol : Totem pole
- Catu daya : 12-24VDC
±5%(ripple P-P: maks. 5%) - Tipe koneksi : Tipe konektor kabel radial
- Tingkat proteksi : IP50
Data sheet Cetak
| Diameter inner shaft | Ø30mm |
|---|---|
| Maks. Frekuensi respon | 200kHz |
| Maks. Revolusi yang diperbolehkan | 3600rpm |
| Starting torque | Maks. 200gf.cm(maks. 0.0196N.m) |
| Resolusi | 1024P/R |
| Fasa output | A, B, Z |
| Output kontrol | Totem pole |
| Catu daya | 12-24VDC ±5%(ripple P-P: maks. 5%) |
| Tipe koneksi | Tipe konektor kabel radial |
| Tingkat proteksi | IP50 |
| Lingkungan_kadar suhu | -10 hingga 70℃, ruang tertutup: -25 hingga 85℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, Ruang tertutup: 35 ~ 90%RH |
| Aksesoris | Spring bracket |
| Berat | Kurang lebih 560g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
