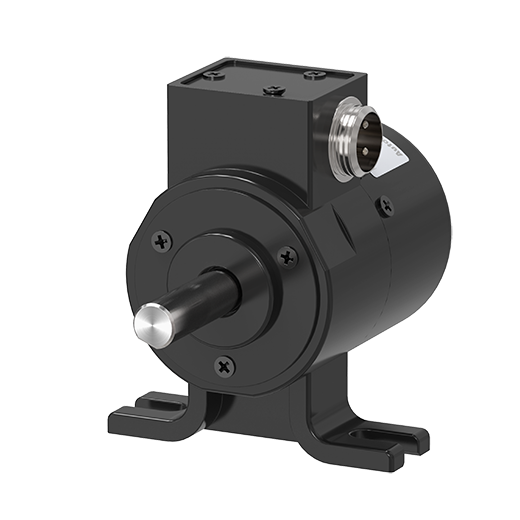

ENA-25-2-T-24 - Incremental Rotary Encoder tipe Side-mounting shaft
*Gambar mungkin dapat berbedaENA-25-2-T-24
- Diameter outer shaft : Ø10mm
- Maks. Frekuensi respon : 300kHz
- Maks. Revolusi yang diperbolehkan : 5000rpm
- Starting torque : Maks. 70gf.cm(maks. 0.00686N.m)
- Resolusi : 25P/R
- Output kontrol : Totem pole
- Catu daya : 12-24VDC
±5%(ripple P-P: maks. 5%) - Tipe koneksi : Radial connector type
- Tingkat proteksi : IP50
Data sheet Cetak
| Diameter outer shaft | Ø10mm |
|---|---|
| Maks. Frekuensi respon | 300kHz |
| Maks. Revolusi yang diperbolehkan | 5000rpm |
| Starting torque | Maks. 70gf.cm(maks. 0.00686N.m) |
| Resolusi | 25P/R |
| Fasa output | A, B |
| Output kontrol | Totem pole |
| Catu daya | 12-24VDC ±5%(ripple P-P: maks. 5%) |
| Tipe koneksi | Radial connector type |
| Tingkat proteksi | IP50 |
| Lingkungan_kadar suhu | -10 hingga 70℃, ruang tertutup: -25 hingga 85℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, Ruang tertutup: 35 ~ 90%RH |
| Aksesoris | Ø10mm coupling, Connector cable |
| Berat | Kurang lebih 345g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※Sold separately: Connector cable
