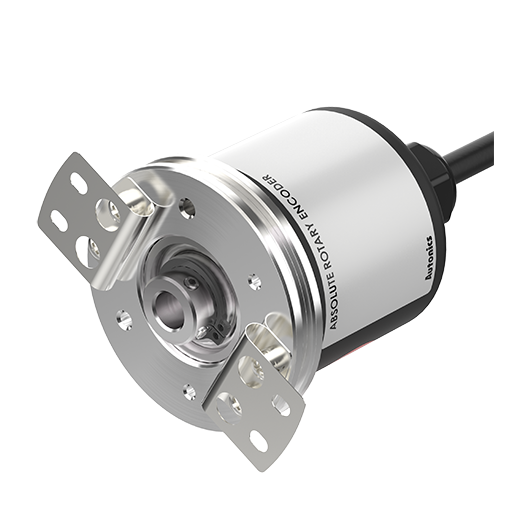

EP58HB8-360-3F-P-24 - Rotary Encoder Absolut Single-Turn 58 mm (Tipe Blind Hollow Shaft)
*Gambar mungkin dapat berbedaEP58HB8-360-3F-P-24
- Diameter inner shaft : Ø8mm
- Maks. Frekuensi respon : 35kHz
- Maks. Revolusi yang diperbolehkan : 3000rpm
- Starting torque : Max. 90gf.cm(max. 0.00882N.m)
- Resolusi : 360P/R
- Arah rotasi : CW
- Output kontrol : PNP open collector
- Catu daya : 12-24VDC
±5%(ripple P-P: maks. 5%) - Tipe koneksi : Tipe kabel aksial
- Tingkat proteksi : IP50
Data sheet Cetak
| Diameter inner shaft | Ø8mm |
|---|---|
| Maks. Frekuensi respon | 35kHz |
| Maks. Revolusi yang diperbolehkan | 3000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolusi | 360P/R |
| Kode output | Gray Code |
| Arah rotasi | CW |
| Output kontrol | PNP open collector |
| Catu daya | 12-24VDC ±5%(ripple P-P: maks. 5%) |
| Tipe koneksi | Tipe kabel aksial |
| Tingkat proteksi | IP50 |
| Lingkungan_kadar suhu | -10 hingga 70℃, ruang tertutup: -25 hingga 85℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, Ruang tertutup: 35 ~ 90%RH |
| Aksesoris | Fixing bracket |
| Berat | Kurang lebih 410g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
