EP58SS6-360-3R-P-5 - Rotary Encoder Absolut Single-Turn 58 mm (Tipe Synchro Shaft)

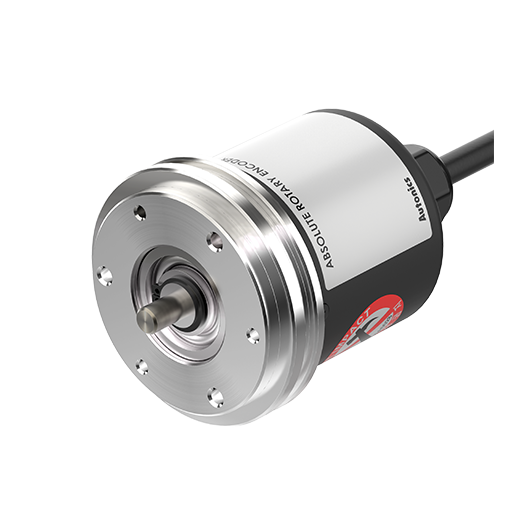

*Gambar mungkin dapat berbedaEP58SS6-360-3R-P-5
- Diameter outer shaft : Ø6mm
- Maks. Frekuensi respon : 35kHz
- Maks. Revolusi yang diperbolehkan : 3000rpm
- Starting torque : Maks. 40gf.cm(maks. 0.00392N.m)
- Resolusi : 360P/R
- Arah rotasi : CCW
- Output kontrol : PNP open collector
- Catu daya : 5VDC
±5%(ripple P-P: maks. 5%) - Tipe koneksi : Tipe kabel aksial
- Tingkat proteksi : IP50
Data sheet Cetak
| Diameter outer shaft | Ø6mm |
|---|---|
| Maks. Frekuensi respon | 35kHz |
| Maks. Revolusi yang diperbolehkan | 3000rpm |
| Starting torque | Maks. 40gf.cm(maks. 0.00392N.m) |
| Resolusi | 360P/R |
| Kode output | Gray Code |
| Arah rotasi | CCW |
| Output kontrol | PNP open collector |
| Catu daya | 5VDC ±5%(ripple P-P: maks. 5%) |
| Tipe koneksi | Tipe kabel aksial |
| Tingkat proteksi | IP50 |
| Lingkungan_kadar suhu | -10 hingga 70℃, ruang tertutup: -25 hingga 85℃ |
| Lingkungan_kadar kelembaban | 35 ~ 85%RH, Ruang tertutup: 35 ~ 90%RH |
| Aksesoris | Ø6mm coupling, Fixing bracket |
| Berat | Kurang lebih 415g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
