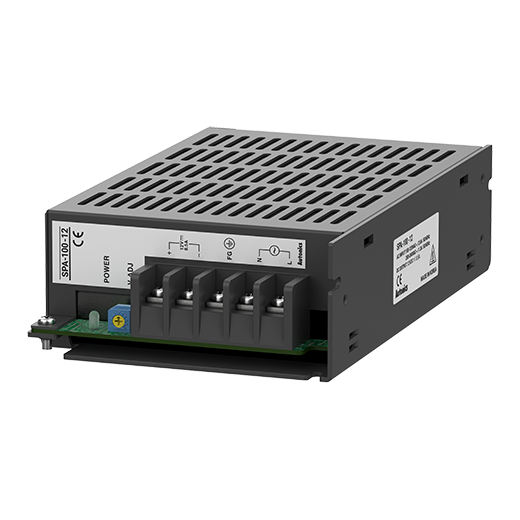

SPA-100-12 - SMPS multu fungsi

Data sheet Cetak

Data sheet

Daya-Output	100W
Tegangan_Input	100-120/200-240VAC~50/60Hz~
Tegangan Diijinkan	85-132/170-264VAC~50/60Hz
Output_Tegangan	12VDC
Output_arus	8.5A
Tipe pemasangan	Using Bolts
Perlindungan	Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit
Input_Frekuensi	50/60Hz
Input_efisiensi	Min. 72%
Input_Konsumsi Arus	Maks. 3.0A
Tipe Output_Jangkauan Pengaturan Tegangan	±5%
Tipe Output_Rasio Fluktuasi Input	Max. ±0.5%
Tipe Output_Rasio Fluktuasi Beban	Max. ±1%
Lingkungan_kadar suhu	-10 hingga 50℃, ruang tertutup: -20 hingga 70℃
Lingkungan_kadar kelembaban	25 ~85%RH, ruangan tertutup: 25 ~ 90%RH
Berat	Kurang lebih 400g

※100% load for rated input voltage (100VAC).
※Rated input voltage
•SPA-030/050 Series: 100-240VAC (85-264VAC)
•SPA-075/100 Series: 100-120/200-240 (85-132/170-264VAC)
under 100% of load.
SPA-100-05 is under 100% of load for [100-120/200-240VAC (100-132/190-264VAC)].
※Rated input voltage (100VAC).
※Adjusting voltage by the output voltage adjuster (V.ADJ), it is changed the within voltage adjustment range.
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
