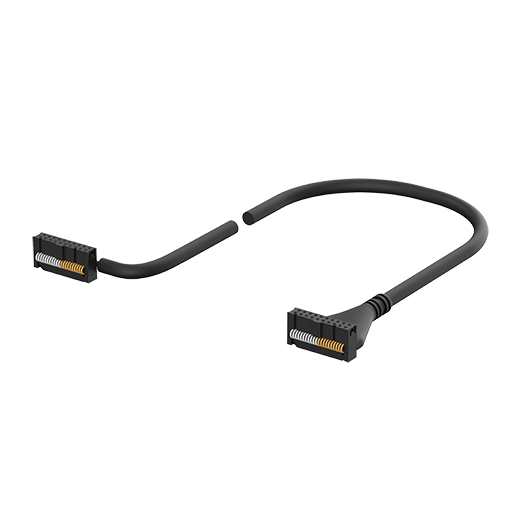

CH20-HP015-A4T5L - I/O Terminal Block Cables
* Image may differCH20-HP015-A4T5L
- Connector for PLC : Hirose 20pin socket
- Connector for terminal block : Hirose 20pin socket
- Applicable cable : UL 20276 TWIST 20C
- Conductor characteristics : 7/0.127mm(AWG 28)×10P
- Insulation diameter : 0.12mm²
Data sheet Print
| Connector for PLC | Hirose 20pin socket |
|---|---|
| Connector for terminal block | Hirose 20pin socket |
| Number of connector pins | 20-pin |
| Applicable cable | UL 20276 TWIST 20C |
| Conductor characteristics | 7/0.127mm(AWG 28)×10P |
| Insulation diameter | 0.12mm² |
| Cable diameter | Ø6.3mm(26C) |
| Rated current | ≤1A |
| Conductor resistance | ≤0.223Ω/m |
| Insulation voltage | 500VAC~ 50/60Hz for 1 min. |
| Insulation resistance | ≥15MΩ/km |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 95g |
