E58HB12-1500-3-T-24-CS - 58 mm Incremental Rotary Encoders (Blind Hollow Shaft Type)

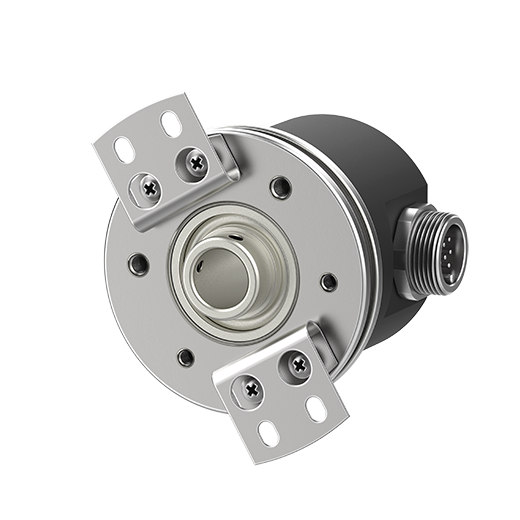

* Image may differE58HB12-1500-3-T-24-CS
- Shaft inner diameter : Ø12mm
- Max. response frequency : 300kHz
- Max. allowable revolution : 5000rpm
- Starting torque : Max. 90gf.cm(max. 0.00882N.m)
- Resolution : 1500P/R
- Control output : Totem pole
- Power supply : 12-24VDC
±5%(ripple P-P: max. 5%) - Connection type : Radial connector type
- Protection structure : IP50
Data sheet Print
| Shaft inner diameter | Ø12mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 1500P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Radial connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 310g(approx. 200g) |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
