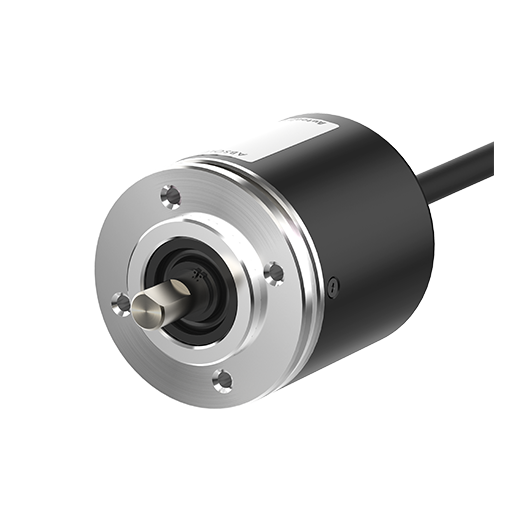

EP50S8-360-1R-P-5-U - 50 mm Single-Turn Absolute Rotary Encoders (Shaft Type)

model * Image may differ
CAD

EP50S8-360-1R-P-5-U

  • Resolution : 360P/R
  • Output code : BCD Code
  • Control output : PNP open collector
  • Connection : Axial cable type
  • Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)

Data sheet Print

Data sheet
Resolution 360P/R
Output code BCD Code
Control output PNP open collector
Max. response frequency 35kHz
Max. allowable revolution 3000rpm
Starting torque Max. 70gf.cm(max. 0.0069N.m)
Unit weight (packaged weight) ≈ 398 g (≈ 482 g)
Connection Axial cable type
Power supply 5VDC @(=) ±5%(ripple P-P: max. 5%)
Current consumption ≤ 100 mA (no load)
Insulation resistance ≥ 100 MΩ (500 VDC@(=) megger)
Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Protection structure IP65(IEC standard)
