EP50S8-360-3R-N-24-U - 50 mm Single-Turn Absolute Rotary Encoders (Shaft Type)

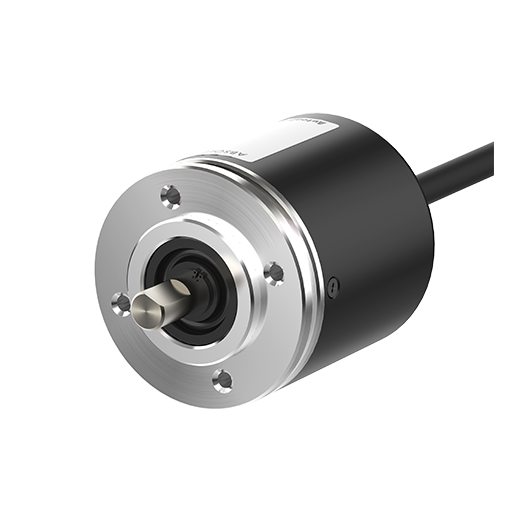

* Image may differ
EP50S8-360-3R-N-24-U
- Resolution : 360P/R
- Output code : Gray Code
- Control output : NPN open collector
- Connection : Axial cable type
- Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Data sheet Print
| Resolution | 360P/R |
|---|---|
| Output code | Gray Code |
| Control output | NPN open collector |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.0069N.m) |
| Unit weight (packaged weight) | ≈ 398 g (≈ 482 g) |
| Connection | Axial cable type |
| Power supply | 12-24VDC @(=) ±5%(ripple P-P: max. 5%) |
| Current consumption | ≤ 100 mA (no load) |
| Insulation resistance | ≥ 100 MΩ (500 VDC@(=) megger) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Protection structure | IP65(IEC standard) |
