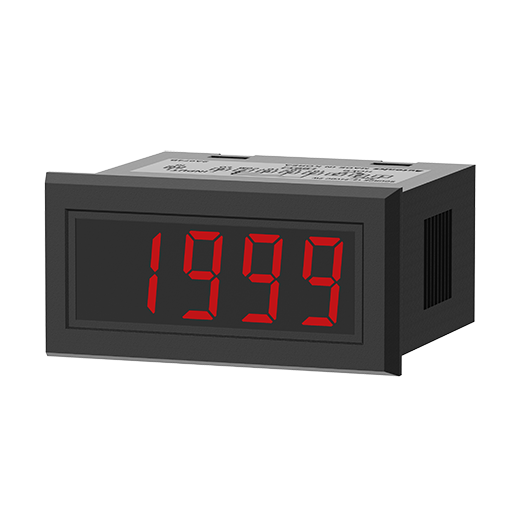

M4N-DA-03 - Compact Digital Panel Meters

Data sheet Print

Data sheet

Display method	3½-digit 7-segment LED
Character height	10mm
Max. display Range	0 to 1999
Measurement	DC current
Input specification	0-19.99mA
Power supply	5VDC
Output_Main Output(Comparative Value)	Indicator
Display accuracy	F.S. 0.2% rdg ±1-digit
Sampling cycle	300ms
Max. allowable input	150% of measurement input range
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 44g

※M4N series is to measure DC only. AC voltage and AC current is not available to be measured.
※Measuring range for direct connection is max. 200VDC, max. DC200mA.
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
