MU-1B-30 - U-shaped Magnetic Proximity Sensors

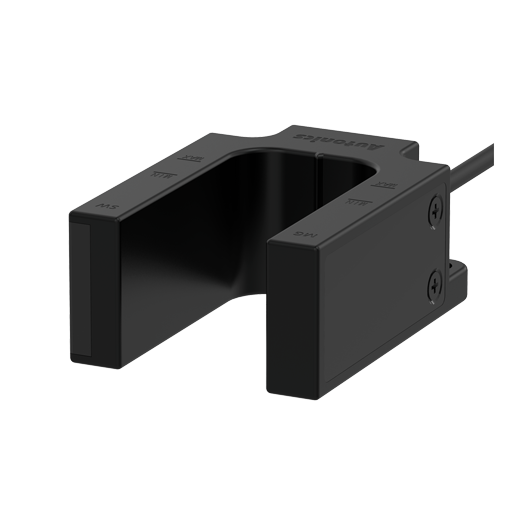

* Image may differMU-1B-30
- Contact type : Normally Closed
- Standard sensing target : Steel plate - a galvanized steel sheet 1.6t
- Protection structure : IP67(IEC standard)
- Applied REED SWITCH : Model : ORD324-10-15 (STANDEX MEDER)
- Weight : ≈ 132.5 g (≈ 172.3 g)
Data sheet Print
| Switching voltage | ≤ 24VDC |
|---|---|
| Contact type | Normally Closed |
| Operation distance_OFF→ON | ± 10 mm |
| Operation distance_ON→OFF | ± 20 mm |
| Standard sensing target | Steel plate - a galvanized steel sheet 1.6t |
| Operating frequency | ≤ 500 Hz |
| Material | Cover/Case: PC (915R) |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient temperature | -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength | 500VAC~ 50/60Hz for 1 min. |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Shock | 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
| Applied REED SWITCH | Model : ORD324-10-15 (STANDEX MEDER) |
| Weight | ≈ 132.5 g (≈ 172.3 g) |
