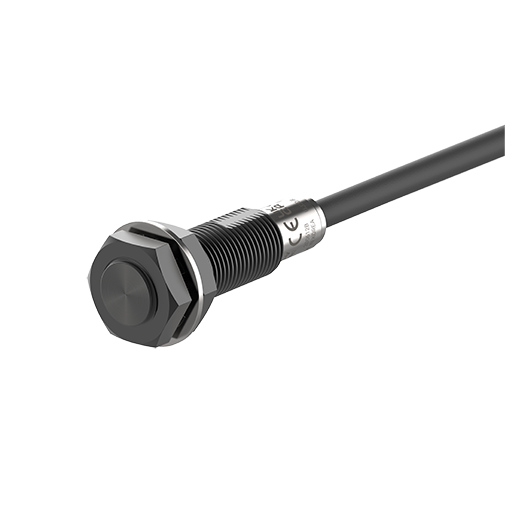

PRFDA12-3DN-V - Full-Metal Cylindrical Long-Distance Inductive Proximity Sensors
12-3D-V.webp)
* Image may differ
PRFDA12-3DN-V
- Installation : Flush
- Sensing side diameter : Ø12mm
- Sensing distance : 3mm
- Hysteresis(distance) : Max. 15% of sensing distance
- Standard sensing target : 12×12×1mm(iron)
- Response frequency : 80Hz
Data sheet Print
| Installation | Flush |
|---|---|
| Sensing side diameter | Ø12mm |
| Sensing distance | 3mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 80Hz |
| Indicator | Operation indicator (orange), stable indicator (green), Abnormal detect indicator (cross-flashing green, orange) |
| Unit weight (packaged weight) | ≈ 80 g (≈ 110 g) |
| Power supply | 10 - 30 VDC@(=)(ripple P-P: ≤ 10 %) |
| Current specification | Current consumption: Max. 20mA |
| Control output | Max. 100mA |
| Residual voltage | ≤ 2.5 V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC@(=) megger) |
| Dielectric strength | 1,000 VAC~ 50 / 60 Hz for 1 minute (between all terminals and case) |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP66, IP67 (IEC standard) |
| Connection | Cable type |
| Cable Standard/material | Oil resistant cable (dark gray) |
| Material | Case / Nut: stainless steel 303 (SUS303, PTFE coated), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated) |
※Use accessories (nut, washer) made of SUS. Or, sensing distance cannot be guaranteed.※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.※Ambient temp.: UL approved surrounding air temperature 60 ℃
