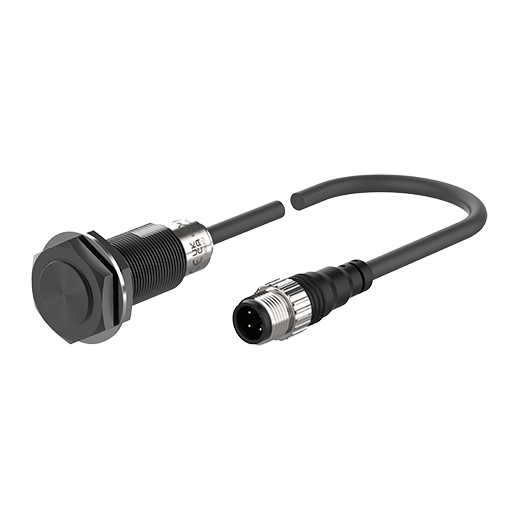

PRFDAW18-7DN-V-K - Full-Metal Long-Distance Cylindrical Inductive Proximity Sensors (Factor 1 on Fe/Al)
18-7D-(I)V.webp)
* Image may differ
PRFDAW18-7DN-V-K
- Installation : Flush
- Sensing side diameter : Ø18mm
- Sensing distance : 7mm
- Hysteresis(distance) : Max. 15% of sensing distance
- Standard sensing target : 30×30×1mm(iron)
Data sheet Print
| Installation | Flush |
|---|---|
| Sensing side diameter | Ø18mm |
| Sensing distance | 7mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 30×30×1mm(iron) |
| Response frequency | 10kHz |
| Indicator | Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) |
| Unit weight (packaged weight) | ≈ 55 g (≈ 90 g) |
| Power supply | 10 - 30 VDC@(=)(ripple P-P: ≤ 10 %) |
| Current specification | Current consumption: Max. 20mA |
| Control output | Max. 100mA |
| Residual voltage | ≤ 2.5 V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC@(=) megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock | 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP66, IP67 (IEC standard) |
| Connection | Cable connector type |
| Connector type | M12 plug connector |
| Cable Standard/material | Oil resistant cable (dark gray) |
| Material | Case / Nut: stainless steel 303 (SUS303, PTFE coated), rear cap: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated) |
※ Use accessories (nut, washer) made of SUS. Or, sensing distance cannot be guaranteed. ※ The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance. ※ UL approved surrounding air temperature 60 ℃ ※ Thickness: DIA. of sensing side Ø 12 mm, Ø 18 mm: 0.4 mm / DIA. of sensing side Ø 30 mm: 0.5 mm
