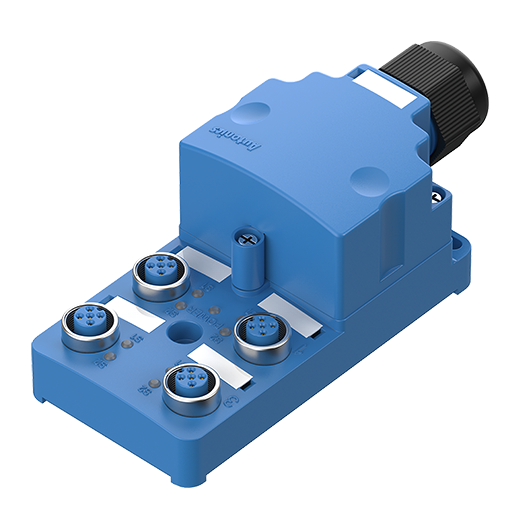

PT4-P4DN5 - Sensor Distribution Boxes (M12 5-Pin Connector Type)
* Image may differ
PT4-P4DN5
- Number of ports : 4-port
- Output : 2-Signal(DC 4-Wire type)
- Output logic : NPN
- Material : Case: Polybutylene terephthalate (G15%), Name plate: Polycarbonate, Cover: Polybutylene terephthalate(G15%), Cover nut: Polyamide 6 (G15%)
- Applicable cable out diameter : 10.5 mm ± 0.3
- Unit weight (packaged weight) : ≈ 154 g (≈ 284 g)
Data sheet Print
| Number of ports | 4-port |
|---|---|
| Output | 2-Signal(DC 4-Wire type) |
| Output logic | NPN |
| Material | Case: Polybutylene terephthalate (G15%), Name plate: Polycarbonate, Cover: Polybutylene terephthalate(G15%), Cover nut: Polyamide 6 (G15%) |
| Applicable cable out diameter | 10.5 mm ± 0.3 |
| Unit weight (packaged weight) | ≈ 154 g (≈ 284 g) |
| Power supply | 12-24VDC @(=) |
| Rated current | 2A(per signal), 2A(per port), 7A(total) |
| Current consumption | ≤ 5 mA |
| Connection life cycle | Min. 200 operations |
| Environment_Ambient temperature | -25 to 75, storage: -30 to 80 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 95% RH |
| Protection structure | With connector / waterproof cover: IP67 (IEC standard), With protection cover: IP52 (IEC standard) |
