T4LI-N4NJ4C-N - Digital Temperature Indicators

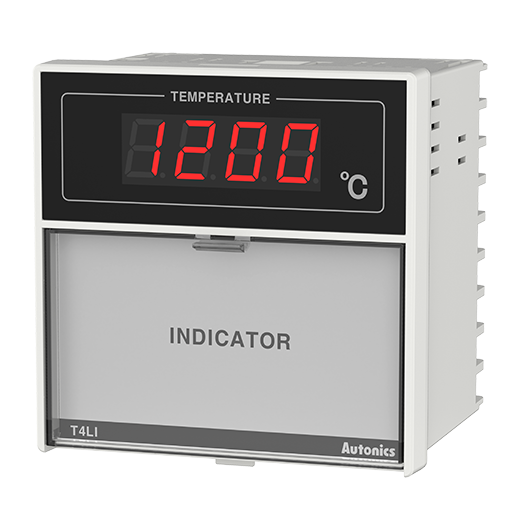

* Image may differT4LI-N4NJ4C-N
- Display method : 4-digit 7-segment LED
- Input specification : Thermocouple: J(IC)
- Sampling cycle : 100ms
- Control output : Indicator
- Display range : 0 to 400℃
- Power supply : 100-240VAC~ 50/60Hz
Data sheet Print
| Display method | 4-digit 7-segment LED |
|---|---|
| Input specification | Thermocouple: J(IC) |
| Sampling cycle | 100ms |
| Control output | Indicator |
| Display range | 0 to 400℃ |
| Power supply | 100-240VAC~ 50/60Hz |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 274g(approx. 185g) |
※Name plate and connections are different from previous T3/T4 Series.
※Please contact us for temperature unit ℉ model.
※In case of the T3NI, T3SI Series and the decimal point display models
At room temperature (23ºC±5ºC): (PV ±0.5% or ±2℃, select the higher one)±1-digit
Out of room temperature range: (PV ±0.5% or ±3℃, select the higher one)±1-digit
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
